Train Horn with Compressor for Truck — Full Air System Anatomy

Compressor + tank + trumpets architecture explained. What each component does, real Viair / Kleinn / HornBlasters specs, fill times, install flow, sizing rules.

By Train Horn for Truck Editorial Published April 29, 2026 Updated May 7, 2026

A “train horn with compressor” is the standard architecture for any 140+ dB truck install. The compressor pressurizes a dedicated tank, the tank reservoirs the air, and a solenoid releases that pressurized air through trumpets when you trigger the horn. This is not a marketing distinction — it’s the physical system that separates a real-class train horn from an electric drop-in or a tankless direct-drive design.

This page maps the four-component architecture, the real-spec compressors that show up on every quality kit, fill-time math, and the sizing rules that determine whether your install works reliably.

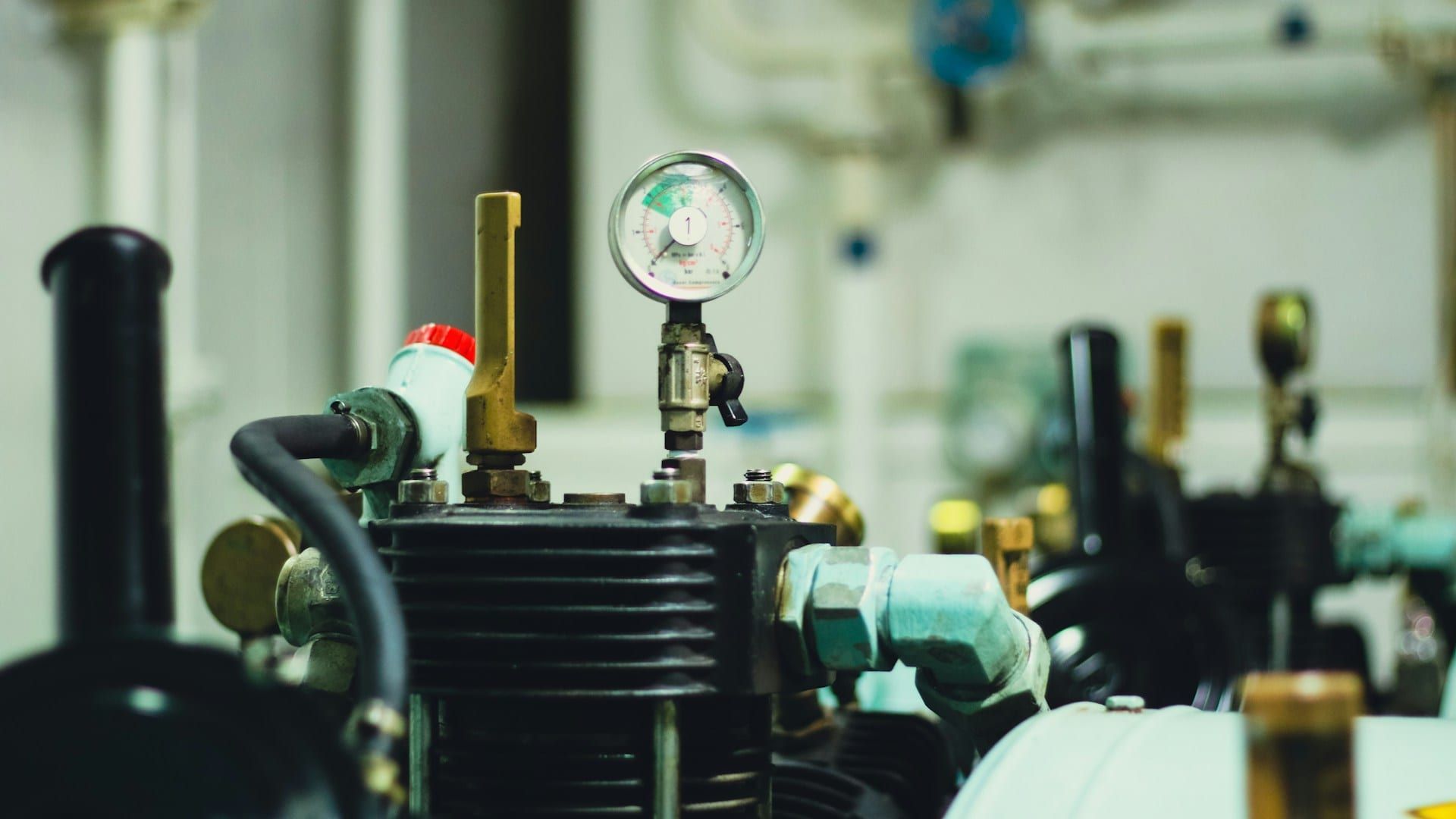

Onboard air compressor close-up — pneumatic system core component — Photo · Mike Bergmann · pickup engine bay (with-compressor install territory)

The four-component architecture

Every train horn kit “with compressor” has the same four-piece anatomy:

Compressor — 12V motor-driven pump that pressurizes air to 150 PSI (typical) or 200 PSI (premium).
Tank (reservoir) — pressure vessel that stores compressed air, sized 1–8 gallons depending on kit class.
Solenoid valve — electrically actuated valve that opens to release tank air through the trumpets when the horn button fires.
Trumpets (the horn itself) — die-cast aluminum or stamped steel bells that convert pressurized air into the chord you hear.

Wiring connects all four to the truck’s 12V bus through fuses, relays, and a horn button (factory or aftermarket). Air plumbing connects compressor → tank → solenoid → trumpets through nylon or steel pressure tubing.

Skip any one of the four and the system either doesn’t work or doesn’t reach rated SPL. A horn without a compressor needs an external air source. A horn without a tank needs a much bigger compressor running continuously (the tankless / direct-drive category — see /types/tankless-train-horn-for-truck/). A horn without a solenoid needs manual valve actuation. A horn without trumpets is just a tank.

Compressor specs that actually matter

Most compressor specs are noise — what determines real-world performance is three numbers:

Max amp draw at operating pressure (determines fuse and wire gauge)
Duty cycle at operating pressure and temperature (determines fill reliability)
CFM at 0 PSI and at operating PSI (determines fill time)

Manufacturer-published numbers for the four compressors that ship on virtually every quality kit:

Compressor	Max amp draw	Duty cycle	Max PSI	Source
Viair 400C	30 A at 12V	100% at 40 PSI / 33% at 100 PSI	150 PSI	Viair 400C
Viair 444C	27 A at 200 PSI	Higher pressure rating	200 PSI	Viair 400C/444C
Kleinn 6350RC	21 A	100% at 100 PSI at 72°F	150 PSI	Kleinn 6350
HornBlasters 1NM	>26 A	Not published in detail	150 PSI	HB wiring kit

The Kleinn 6350RC is the honest spec leader — 100% duty cycle at the actual operating pressure (100 PSI) at room temperature, with the lowest amp draw in the class. The Viair 400C has higher peak performance but its 33% duty cycle at 100 PSI means it thermal-cuts during long fill cycles in hot weather.

For Asian-import compressors that don’t publish duty cycle qualifiers (“100% duty cycle” with no PSI or temperature spec), the omission is itself the answer — they don’t sustain rated output.

Tank sizing — what you’re actually buying

Tank capacity sets blast duration. Larger tank = longer continuous honk before pressure bleed-off:

Tank capacity	Approximate blast duration at 150 → 110 PSI	Refill time on 1NM compressor	Typical kit class
1.5 gallon	2–3 seconds	1.5–2 minutes	Compact / pickup hood-mount kits (Kleinn HK7)
2 gallon	3–5 seconds	2–3 minutes	Light-duty pickup kits (Conductor’s Special 232)
3 gallon	5–8 seconds	3–4 minutes	Mid-tier kits
5 gallon	10–15 seconds	4–5 minutes	Premium aftermarket (Conductor’s Special 540 / 544)
8 gallon	15–25 seconds	6–7 minutes	Heavy-duty / Class 8 / dual-compressor builds

A 5-gallon tank from 0 to 150 PSI on a single Kleinn 6350 takes about 4 min 35 sec (source). On a Viair 400C the same fill takes longer due to the lower duty cycle at high pressure.

The trade-off: bigger tank = longer blast capacity but slower full-fill from empty and more weight (a 5-gallon air tank weighs ~25 lb empty). For most truck installs, 2-gallon is the practical floor and 5-gallon is the practical ceiling.

Solenoid sizing — the spec people skip

Solenoid valve diameter determines how fast air flows from tank to trumpets when the horn button fires. Undersized solenoid = bottleneck = lower SPL.

1/4-inch solenoid — fits compact / 1.5-gallon kits with smaller trumpets
3/8-inch solenoid — standard for 2–5 gallon kits with mid-size trumpets
1/2-inch solenoid — required for K5LA, large Shocker XL, RS-3L, and other big-bell horns

Using a 1/4-inch solenoid on a K5LA chokes the bells — air can’t escape the tank fast enough to fill the trumpet plenum at full pressure. The horn fires but at 5–10 dB lower SPL than rated. Manufacturer kits ship with the correct solenoid; problem appears when DIY installers swap horns without upgrading the solenoid.

Trumpet count — what it actually does to sound

Trumpet count determines the chord, not the loudness:

1 trumpet = single tone (Wolo Bad Boy class)
2 trumpets = two-note interval (Stebel Magnum, dual electric)
3 trumpets = three-note chord (Kleinn HK7, Nathan K3LA — the cab-car / commuter chord)
4 trumpets = four-note chord (HornBlasters Shocker XL S4)
5 trumpets = five-note chord (HornBlasters Shocker XL S6, Nathan K5LA — the Amtrak chord)

Going from 4 to 5 trumpets adds one more note to the chord but does not significantly increase peak SPL — you’re spreading the same air mass across more bells. The Shocker XL S4 measures 147.7 dB at 3 ft DJD-verified; the S6 measures 141 dB at 3 ft (different bell tuning, slightly lower peak SPL despite more trumpets).

What matters more for SPL is the trumpet material (die-cast aluminum vs stamped steel), bell length, and diaphragm quality — not raw count.

Ford F-150 pickup — typical with-compressor train horn install platform — Photo · Caleb White · F-150 pickup (Conductor’s Special-class platform)

How the system actually fires

Trigger sequence when you press the horn button:

Horn button closes the 12V control circuit through a relay coil.
Relay energizes the high-current solenoid coil (avoiding switch contact damage).
Solenoid valve opens within ~10 ms, releasing pressurized tank air.
Air flows from tank → solenoid → trumpet plenum → diaphragm → bell.
Diaphragm vibrates at the bell’s tuned frequency, producing the chord.
Continuous flow until horn button releases or tank pressure drops below diaphragm-actuation threshold (~80 PSI typical).
Pressure switch detects tank pressure dropping below restart threshold (~110 PSI on standard kits) and signals compressor to refill.
Compressor cycles on, pumps tank back up to cutoff pressure (~150 PSI), shuts off.

Total latency from horn-button press to sound: ~30–50 ms. Imperceptible to the ear — sounds instant.

Real-spec kit recommendations

The compressor-and-tank combinations that show up on every quality build:

Light-duty pickup territory ($800–$1,100)

HornBlasters Conductor’s Special 232 — Shocker S4 (147.7 dB DJD) + 2-gal + Viair 280C, $799.99 sale (source)
HornBlasters Conductor’s Special 2HB — Shocker XL 4-trumpet + 2-gal + 1NM, $849.99
Kleinn HK7 Beast — 3-trumpet stainless + 1.5-gal + 6350 compressor, $839.95 (source)

HD pickup / Class 8 territory ($1,000–$1,500)

HornBlasters Conductor’s Special 540 — Shocker S4 + 5-gal 8-port tank + Viair 400C
HornBlasters Conductor’s Special 544 Nightmare — Shocker XL + 5-gal + 1NM, $1,049.98
Kleinn HK9 Slimline Demon — 3-trumpet steel slim profile + 6350 compressor, $1,149.95 (source)

Refurbished locomotive ($5,500–$6,400 complete)

HornBlasters Nathan AirChime K5LA Kit — refurb K5LA (149.4 dB DJD) + 5- or 8-gal + dual 1NM, $4,999.99–$5,199.99 (source)

For deeper picks see /best/best-train-horn-for-truck/ and /best/loudest-train-horn-for-truck/.

Install flow at a glance

Typical compressor-tank install on a light-duty pickup:

Mount tank under bed, in spare-tire well, or behind cab — bolted to frame rails or cross-member.
Mount compressor in engine bay or under bed, near tank to minimize air-line length. Avoid mounting where it’ll see road-spray or sustained engine heat.
Mount trumpets — under hood (Stebel-class, Kleinn HK7 vertical), bumper bracket (Shocker XL S4), or bed/headache rack (K5LA, Shocker XL S6).
Plumb air lines — 1/4-inch nylon SAE J844 minimum from compressor to tank, 3/8-inch from tank to solenoid, sized solenoid to trumpets.
Wire compressor power — 10 AWG (or 8 AWG for 1NM/Viair 400C) from battery positive through inline fuse within 18 inches of battery → pressure switch → compressor.
Wire solenoid — through automotive 30 A relay triggered by horn button.
Pressure-test at 150 PSI for 5 minutes — soap-water on every fitting to find leaks.
Test-fire with hearing protection — never with anyone within 10 feet of trumpets.

Realistic DIY time: 3–5 hours on a light-duty pickup, 4–7 hours on HD or Class 8 with frame-rail mount. See /guides/how-to-install-train-horn-on-truck/ for full procedure.

With-compressor vs without-compressor — when to pick which

Use case	Compressor + tank kit	Tankless / direct-drive kit
Maximum SPL (140+ dB at 3 ft)	Required	Not available — physics-capped at 131 dB
Long honk capacity (3+ seconds)	Yes (tank reservoirs air)	No (compressor is the air source, runs continuously)
Compact install	Larger footprint	Smallest footprint
Cost (entry level)	$800+	$400–$700
Reliability over 5+ years	High (Viair / Kleinn proven)	Moderate (compressor runs hot under load)
Daily-driver weather exposure	Tank typically frame-mounted, weather-resistant	Compressor often hood-mounted, weather-exposed

If maximum loudness or chord sound matters, you need a compressor + tank kit. If compact install and lower cost matter more, see /types/tankless-train-horn-for-truck/ — Kleinn Direct Drive 6126/6127 is the only mainstream option in that category.

Heavy-duty dually pickup — premium with-compressor kit install class — Photo · Dan Williams · HD pickup (5-gallon Conductor’s Special territory)

Common pitfalls

Cheap Asian compressor with 5-gallon tank. A no-name $90 compressor cannot sustain duty cycle to refill a 5-gallon tank in any reasonable time. The compressor thermal-cuts mid-fill and you end up with a half-pressure tank. Buy Viair, Kleinn, or HornBlasters branded — the compressor is the heart of the system.
Skipping the pressure switch. Without a pressure switch, the compressor either runs continuously (burns out in under 100 hours) or never starts. Pressure switches are ~$15 — never DIY without one.
Mounting compressor near exhaust manifold. Engine heat plus compressor self-heating = thermal cutoff every cycle. Mount compressor away from heat sources.
Plumbing PVC. Auto air lines must be SAE J844 nylon or steel/copper hardline. PVC fails under pressure cycling.
Undersized solenoid on big trumpets. A 1/4-inch solenoid on a K5LA loses 5–10 dB. Match solenoid to trumpet inlet size.
No relay between switch and solenoid. The solenoid coil draws 1–2 A continuous and the inrush peaks higher. Switching directly through a dash button or factory horn switch melts the contacts.
