Train Horn for Toyota Tundra — XK70 i-FORCE MAX & XK50 Install Playbook
Tundra 3rd-gen i-FORCE MAX hybrid wiring rules, 2nd-gen 5.7L V8 alternator headroom, frame mount, factory horn relocation. Verified install playbook.
Picking a train horn for truck install on a Toyota Tundra splits cleanly into two generations with very different install rules. 3rd gen XK70 (2022+) introduces the i-FORCE MAX hybrid that puts the 12V auxiliary battery under the rear seat — not in the engine bay. 2nd gen XK50 (2007-2021) is the simpler 5.7L V8 platform with a 130-150A factory alternator. This page is the chassis-specific playbook with verified Tundra specs.
Photo · Caleb White · pickup truck (Tundra-class install platform)
Tundra alternator headroom by generation
| Generation | Engine | Factory alternator | Headroom for 1NM-class compressor (26-30 A) |
|---|---|---|---|
| 3rd gen XK70 (2022+), i-FORCE 3.5L V6 twin-turbo | non-hybrid | Not publicly published by Toyota; community estimate ~150 A | Adequate (verify pending) |
| 3rd gen XK70 i-FORCE MAX hybrid | 3.5L V6 + electric motor | DC-DC step-down from HV traction battery (no conventional alternator) | See hybrid section |
| 2nd gen XK50 (2007-2021), 5.7L 3UR-FE V8 | most common | 100A standard / 130A with rear-seat ent. / 150A with tow package | 20-50 A — adequate to comfortable |
| 2nd gen XK50, 4.6L 1UR-FE V8 | base | 100A typical | Borderline — single small compressor only |
Source: Tundra Solutions alternator amperage thread, LCE Performance 1UR-FE / 3UR-FE alternator page, Tundras.com 3rd gen alternator output thread.
Tundra 3rd gen XK70 i-FORCE MAX — critical hybrid wiring rules
The i-FORCE MAX hybrid powertrain (3.5L V6 + electric motor in the bell-housing, 437 hp / 583 lb-ft) is only available in CrewMax configurations because the high-voltage NiMH battery pack lives under the rear seat. The 12V auxiliary battery on hybrid Tundras is also located under the rear seat — not in the engine bay.
Critical install consequence: the 12V power post in the engine bay on i-FORCE MAX Tundras feeds the ECU controlling the electric motor in the transmission, not a battery. “There’s a large rubber grommet next to the battery in the floor under the seat” — the 12V aux battery is reachable only by removing rear-seat plastic (Tacoma4G hybrid 12V battery access thread — same architecture as Tundra hybrid).
Train horn power wiring on Tundra Hybrid:
- Run main compressor power lead through the firewall to the 12V battery under the rear seat — do NOT tap the under-hood 12V post
- Or use the under-hood jump-start terminal as a switched-only tap point
- Aftermarket vendors (SDHQ, Yota Xpedition) sell relocation kits specifically because the factory 12V aux battery is in the cab
- DC-DC converter from the HV pack feeds the 12V system — keep continuous compressor draw under 30 A
For the underlying hybrid wiring rules see /types/12v-train-horn-for-truck/.
Tundra 3rd gen XK70 (non-hybrid) — install reality
The non-hybrid 3.5L V6 twin-turbo (389 hp / 479 lb-ft, same 10-speed automatic as the hybrid) keeps a conventional alternator and under-hood 12V battery. Frame is fully boxed steel on XK70 (vs partial C-channel on prior gens) — clean tank-mounting under the bed rails.
Toyota does not publish a specific alternator amperage on the 3rd gen Tundra. The factory parts catalog lists the genuine alternator part 27060-F4020 without amperage spec (parts.toyota.com). Community estimate is ~150 A based on packaging similarity to 2nd gen tow-package alternators.
Install pattern: trumpets behind the bumper above the oil cooler / in front of the radiator, tank under bed, compressor on driver-side frame rail.
Tundra 2nd gen XK50 (2007-2021) — easy install
The 2nd gen XK50 with 5.7L 3UR-FE V8 is the easiest Tundra platform for train horn install. Standard 130A alternator covers single 1NM-class compressor draw (26-30 A continuous, 60-80 A inrush) with ~50 A headroom on a tow-package truck. Without tow package, a 100A alternator is borderline — stick with single small-compressor kits.
Aux fuse access: factory main relay/fuse box on top of the engine has tapped holes for aftermarket aux fuse blocks (Blue Sea, Aux-Beam) via factory-fit brackets (Overland Equipped 2007-2021 Tundra aux fuse bracket).
Verified Tundra install case study: Cody’s 2010 Tundra CrewMax with HornBlasters — full HornAir 544K with 5-gallon tank under the bed, compressor on frame rail. Documents the standard install layout.
Trumpet location (per Tundra Solutions community): “horizontal bar above the oil cooler and in front of the radiator, trumpets facing forward and down in the space behind the bumper” — popular Tundra-specific mount.
Factory horn: dual electric horns mounted to driver-side core support ahead of the radiator. The factory horn relay’s signal wire is the convenient trigger source for your aftermarket relay.
Photo · Mike Bergmann · pickup engine bay (Tundra install context)

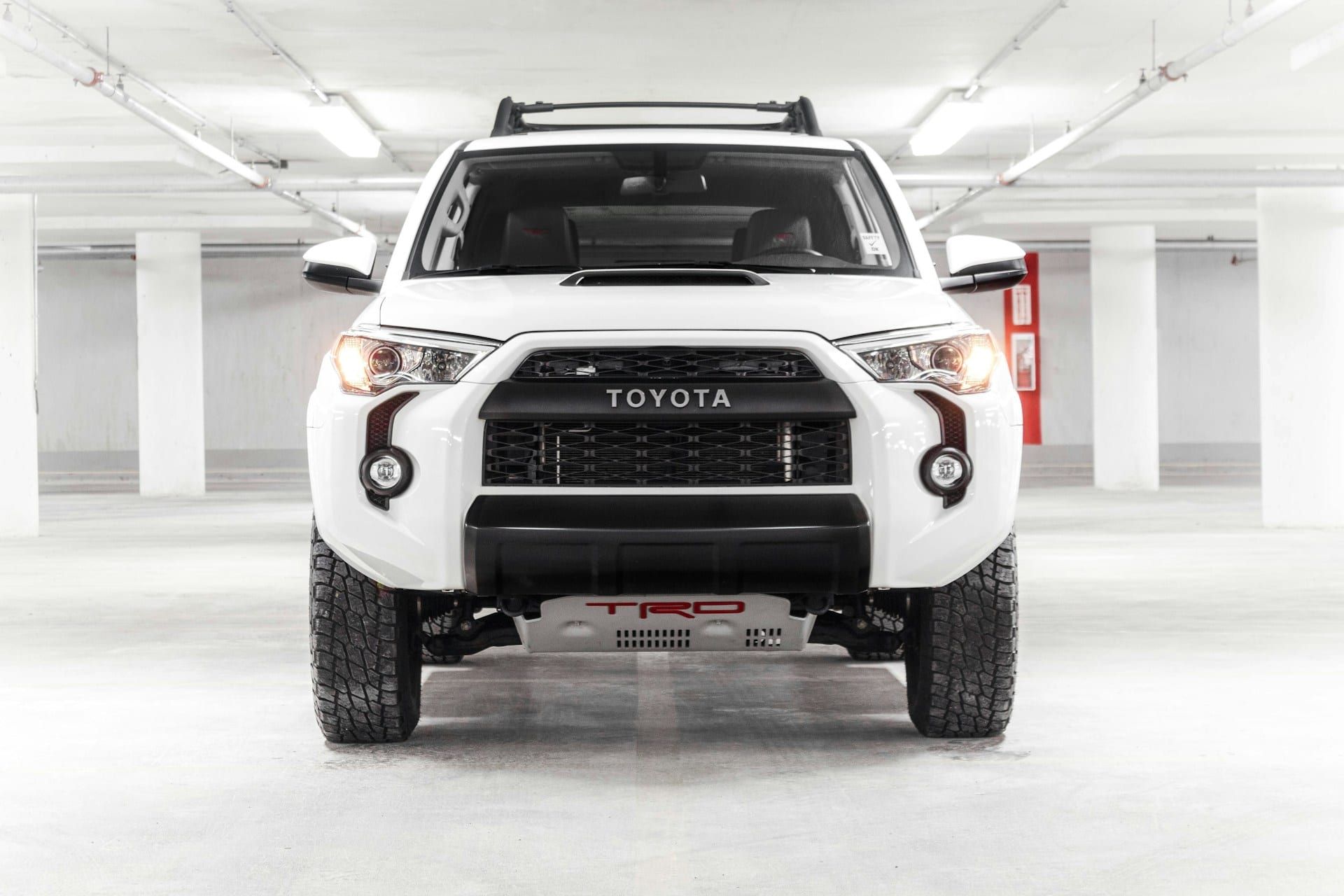

TRD Pro variant considerations
TRD Pro skid plate uses front tow-hook bolts, 5 factory threaded holes, and 2 through-holes in the cross-member behind the oil pan. Per Toyota’s TRD skid plate install sheet, the skid plate covers the area where many builders mount the air tank — TRD Pro install requires either:
- Tank under the bed (preferred on XK50 5.7L 3UR-FE V8)
- Tank relocated off the front cross-member to inside the frame rails
Reported clearance issue: skid plate fouls front-diff bolt arms on some installs (Tundras.com TRD Pro skid plate thread).
Crew-cab vs Double-cab packaging
| Configuration | XK70 hybrid | XK70 non-hybrid | XK50 |
|---|---|---|---|
| CrewMax (5.5’ or 6.5’ bed) | i-FORCE MAX only | Available | Available |
| Double Cab (6.5’ or 8.1’ bed) | Not available | Available | Available |
XK70 hybrid is CrewMax only because the HV battery occupies under-rear-seat space. Non-hybrid XK70 Double Cab keeps full underseat space for tanks/wiring. Long 8.1’ bed (Double Cab only) provides the longest under-bed tank-mount surface — no need for cross-frame brackets.
Recommended kit by Tundra platform
| Tundra platform | Recommended kit | Total install cost |
|---|---|---|
| XK70 i-FORCE MAX hybrid | Stebel Nautilus ($55) or Conductor’s Special 232 with rear-seat 12V tap ($799.99) | $75 / $830-1,200 DIY |
| XK70 non-hybrid 3.5L V6 | Conductor’s Special 232 ($799.99) | $830 DIY |
| XK50 5.7L V8 with tow package | Conductor’s Special 232 or 540 ($799.99-$899) | $830-$930 DIY |
| XK50 4.6L V8 | Stebel Nautilus or compact tankless ($55-$340) | $75-$370 DIY |
| TRD Pro / Trailhunter | Conductor’s Special 232 with bed-mount tank | $850 DIY |
Common Tundra-specific install pitfalls
- Tapping under-hood 12V post on i-FORCE MAX. That post feeds the hybrid ECU, not a battery. Run power through the firewall to the under-rear-seat 12V aux battery.
- Mounting tank on front cross-member with TRD Pro skid plate. The skid plate covers that area — relocate tank or skip the skid plate.
- Single 100 A alternator on XK50 base 4.6L V8. Borderline for 1NM-class compressor. Keep continuous draw under 25 A or upgrade alternator (LCE Performance offers 270 A drop-in).
- Routing power above the exhaust on 3UR-FE V8. Heat damages wire insulation. Run along factory harness paths inside frame rails.
- Forgetting ignition-switched relay on hybrid. Without it, parasitic solenoid draw triggers BMS low-voltage flags during long parks.
Tundra model years to call out
- XK50 (2nd gen): 2007-2013 (initial 5.7L 3UR-FE V8), 2014-2021 (refresh, same V8 + 4.6L 1UR-FE)
- XK70 (3rd gen): 2022+ with i-FORCE non-hybrid and i-FORCE MAX hybrid options
- TRD Pro: 2015+ (XK50), 2022+ (XK70) with skid plate considerations
- Trailhunter: 2024+ overlanding-focused trim with factory ARB Twin compressor (only on 4th gen Tacoma; not Tundra-specific yet)
Sources
- Tundra Solutions alternator amperage thread (XK50 130A/150A): tundrasolutions.com/threads/alternator-amperage.136958
- LCE Performance 1UR-FE / 3UR-FE alternator: lceperformance.com/1ur-4-6l-3ur-5-7l-high-output-alternator-sequoia-tundra
- Tundras.com 3rd gen alternator output thread: tundras.com/threads/whats-the-alternator-output.78559
- Tundras.com hybrid 12V access thread: tundras.com/threads/hybrid-engine-bay-12v-accessory-power-supply.123737
- Tundras.com i-FORCE MAX external wire thread: tundras.com/threads/connecting-external-wire-to-i-force-max.118415
- Toyota Tundra Hybrid owner’s manual jump-start procedure: toyota.com/owners/warranty-owners-manuals/digital/article/tundra-hv/2022/om0c031u/ch07se020410
- HornBlasters Cody’s 2010 Tundra CrewMax install: hornblasters.com/pages/codys-2010-toyota-tundra-crewmax-train-horn-install
- Toyota TRD skid plate install sheet: toyotaparts.sparkstoyota.com/install/PTR60-34220inst.pdf
- Overland Equipped Tundra aux fuse bracket: overlandequipped.com/products/auxiliary-fuse-block-bracket-for-2007-2021-toyota-tundra
- Yota Xpedition Tundra power kit: yotaxpedition.com/products/yp2-8-or-12-button-auxiliary-power-kit-bracket-tundra-2022-sequoia-2023-tacoma-2024-4runner-2025
