Freight Train Horn for Truck — The Deep-Chord Locomotive Sound

What separates freight chord from Amtrak chord — Nathan K5HL, K3LA, P-series specs and what it takes to put that low-end on a truck.

By Train Horn for Truck Editorial Published April 29, 2026 Updated May 7, 2026

When people search “freight train horn for truck” they’re not asking about install architecture — they’re asking about a specific sound. The deep, low, multi-chord blast of a Norfolk Southern dash-9 or a BNSF GE Evolution rolling through a grade crossing. That sound is mechanically distinguishable from the higher Amtrak K5LA chord, and reproducing it on a truck means buying a specific horn — not just any 5-trumpet kit.

This page is about which horns produce the freight sound, why the chord matters, and what you need on a truck to actually hear it that way.

Red and gray freight locomotive — Nathan K5HL chord origin — Photo · Josiah Farrow · Class 8 semi (closest mass-market platform to a freight locomotive)

Freight chord vs Amtrak chord — the actual difference

Modern locomotive horns are tuned to specific harmonic ratios that produce a “chord.” Different horns play different chords, and the freight vs passenger distinction is real and audible:

Chord identity	Horn model	Notes (frequencies)	Where you hear it
K5LA (Amtrak / passenger)	Nathan AirChime K5LA	D#, F#, G#, B, D# (B major 6th) — 311 / 370 / 415 / 490 / 622 Hz	Amtrak diesels, also adopted by CSX, NS, Illinois Central
K5HL (freight, modern GE)	Nathan AirChime K5HL	C, D#, F#, A#, C — 262 / 311 / 370 / 470 / 262 Hz	GE Evolution Series (ES44AC, ES44DC, ES44C4) — Norfolk Southern, BNSF, UP, CSX freight power
K3LA (commuter / cab car)	Nathan AirChime K3LA	3-chime — Metra cab cars, EMUs	Suburban commuter rail
P5 (vintage freight)	Nathan AirChime P5 (sand-cast)	220-554 Hz range, 5-chime	Illinois Central, Rock Island, Southern Pacific freight + passenger
M5 (Canadian freight)	Nathan AirChime M5	”Most musical of all locomotive air horns” — frequencies not consistently documented	Canadian National, Canadian Pacific
RS-3L (Leslie freight)	Leslie SuperTyfon RS-3L	3 chimes, 90-140 PSI, 144 dB at 100 PSI per HornBlasters	EMD freight units pre-1990s

Source: HornBlasters Nathan AirChime overview, Wikipedia Nathan Manufacturing.

The K5LA and K5HL are both five-chime horns but they’re tuned to different chords. The K5HL’s lower starting note (C at 262 Hz vs the K5LA’s D# at 311 Hz) and the inverted frequency stacking produce the low-end “freight rumble” that distinguishes it from the brighter Amtrak K5LA. If you’ve stood near a Norfolk Southern dash-9 vs an Amtrak ACS-64, the difference is immediate.

What you need to reproduce the freight sound on a truck

Three product paths produce a credible freight chord:

Path 1: Refurbished Nathan K5HL ($1,500-$4,500 horn-only)

The K5HL is the standard horn on every GE Evolution Series locomotive built since ~2005. When one comes off a retired ES44AC, it gets refurbished and resold the same way K5LAs do. Less common in the consumer market than the K5LA — most retailer pages don’t carry K5HL inventory consistently, but they appear on eBay, locomotive surplus auctions, and occasionally at HornBlasters.

When buying refurbished K5HL:

Verify it’s locomotive-pulled (sandblast and powder-coat finish, replaced internals)
Confirm the chord — some “K5HL” listings are actually mislabeled K5LAs
Expect $1,500-$4,500 horn-only depending on condition and source
Same install requirements as K5LA: 5- or 8-gallon tank, 1NM compressor, 1/2-inch solenoid, K5LA-class bracketry

Path 2: HornBlasters Shocker XL S6 ($700-1,000 in complete kit)

The 6-trumpet Shocker XL is the closest aftermarket-designed approximation of a 5-chime freight chord. Per DJD Labs 2014 testing, it measures 141 dB at 3 ft — quieter than the S4 (147.7 dB) because the air mass is spread across more bells, but the chord coverage is closer to a real K5HL or K5LA. Bell tuning is HornBlasters’ own design, not an exact K5HL replica.

Available in Conductor’s Special 540 and similar kit configurations. Complete install $700-$1,200 depending on chassis.

Path 3: Refurbished Leslie RS-3L ($1,150-$4,400 horn-only)

The Leslie 3-chime SuperTyfon was the freight-locomotive standard before Nathan’s K-series took over. RS-3L produces a deeper, more punctuated 3-note chord than the 5-chime K5HL — different “freight sound” but recognizably locomotive. Less common in modern installs but available:

HornBlasters new-refurbished: $4,399.98 (source)
Locomotive Parts Supply refurbished: $1,149.95 (source)
144 dB at 100 PSI per manufacturer spec
Operating range 90-140 PSI, fits standard truck pneumatic systems

What does NOT produce a freight chord

Several products are commonly mistaken for freight horns but produce different sounds:

Stebel Nautilus / electric truck horn — single-tone or two-tone, no chord. Produces a “loud horn” sound, not locomotive.
Amazon “5-trumpet 150 dB freight train horn” — bell tuning is approximate at best, materials are stamped steel rather than die-cast aluminum, no harmonic ratio matching to real K-series horns.
HornBlasters Shocker S4 — 4-trumpet chord but tuned to HornBlasters’ own design, closer to Amtrak character than freight.
Wolo Bad Boy — single-tone, 130-140 dB rated, no chord at all.

If you hear a “150 dB freight train horn” on Amazon and the listing doesn’t reference Nathan K5HL or Leslie RS-3L specifically, it’s not producing a freight chord — just a generic 5-trumpet “train-horn-style” sound.

Red Class 8 semi — typical platform for refurbished K5HL or RS-3L install — Photo · Tom Jackson · Class 8 semi (freight chord on a working truck)

Why the freight chord sounds different at 100 ft

A locomotive horn at the trumpet bell measures 149-152 dB. By FRA §229.129 compliance distance (100 ft from the front of the locomotive), it measures 96-110 dB. The carrier of that signal across distance is not the peak SPL — it’s the harmonic content.

Higher frequencies attenuate faster in atmospheric air than lower frequencies. A 622 Hz tone (K5LA’s high D#) drops faster over distance than a 262 Hz tone (K5HL’s low C). At 100 feet, the K5HL’s low-frequency content survives better than the K5LA’s high-frequency content. That’s why the freight sound carries a different “rumble” character at distance — not just because of the chord, but because the lower harmonics propagate further.

For truck install: this means a freight-tuned horn on a Class 8 sounds different at 100 feet downroad than a passenger-tuned horn on the same truck. Owner-operator drivers who specifically want the freight sound (most do, since they’re on freight equipment) gravitate toward K5HL or RS-3L for this reason.

Truck install constraints — same as K5LA

The freight-chord horns share the same install architecture as the Amtrak K5LA:

Air supply: 110-150 PSI cut-off, 5-gallon (light/HD pickup) or 8-gallon (Class 8) reservoir, single or dual 1NM compressor.
Solenoid: 1/2-inch ID matched to large bell inlets — undersized solenoid loses 5-10 dB on these horns.
Air line: 1/2-inch SAE J844 nylon or steel hardline.
Mounting: K5HL is 5-trumpet, similar dimensions to K5LA (~30” bell spread). Pickup install needs bed-mount, headache rack, or roof rack — does not fit under a typical pickup hood. RS-3L is 3-trumpet, 26.5” wide — also bed-mount class on pickups.
Class 8 wet-tank tap: same procedure as K5LA, see /types/train-horn-without-compressor/ for the wet-tank tap install.

Total install cost on a Class 8 with wet-tank tap: $700-$1,200 (RS-3L from Locomotive Parts Supply) up to $5,500 (refurbished K5HL with full kit infrastructure). Same SPL output as K5LA: ~149.4 dB at 3 ft DJD-verified equivalent.

Use case alignment

You want	Right freight-chord horn
Modern GE Evolution chord (current freight power)	Refurbished Nathan K5HL
Pre-1990s freight chord (EMD-era)	Leslie RS-3L
Vintage freight (1950s-1970s)	Nathan P5 sand-cast (rare, mostly auction-only)
Aftermarket approximation, lower cost	HornBlasters Shocker XL S6 in Conductor’s Special 540 kit
Canadian freight chord	Nathan M5 (not consistently available in US retail)

For Amtrak / passenger chord see the K5LA-focused /types/real-train-horn-for-truck/.

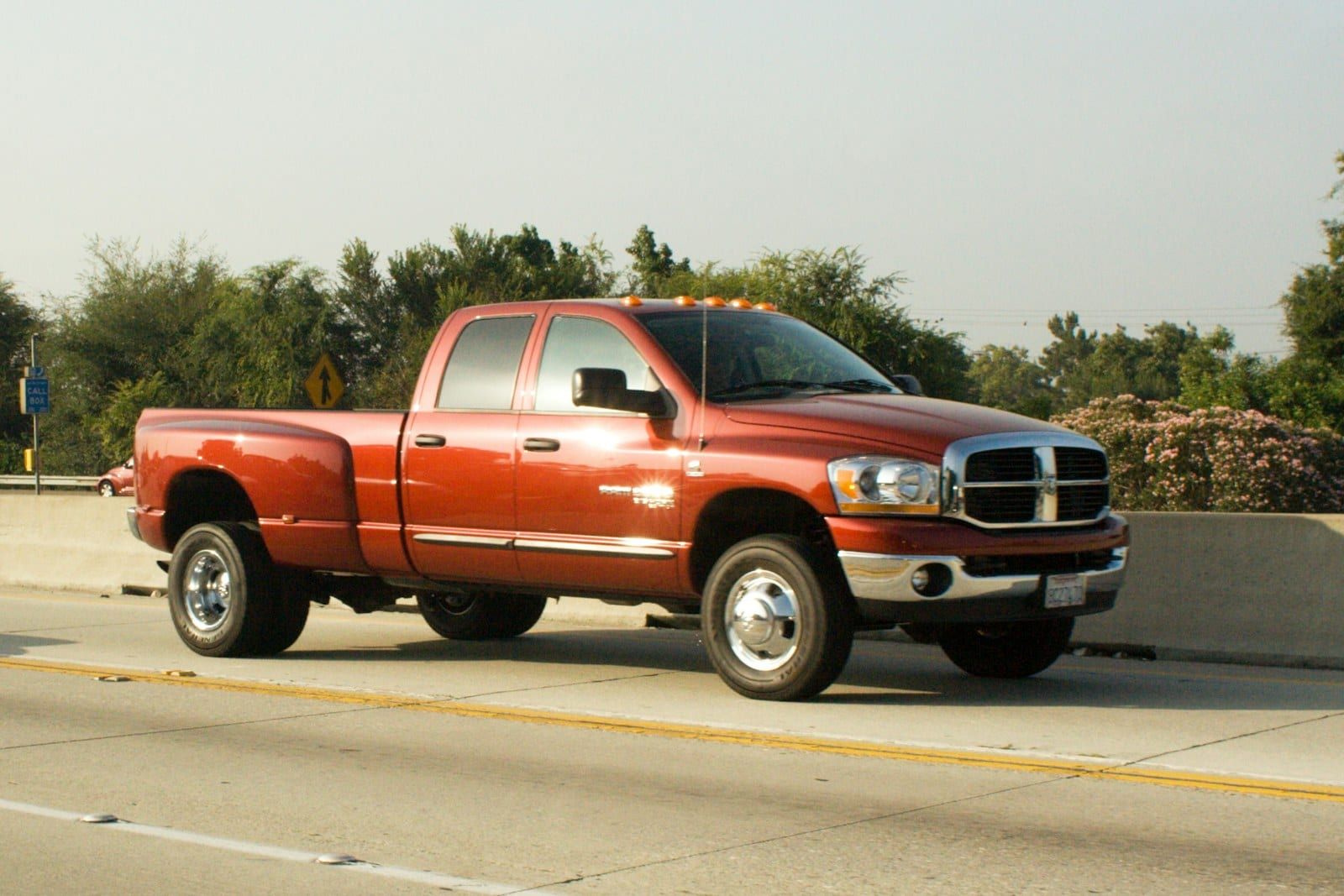

Heavy-duty dually pickup — bed-mount platform for K5HL or RS-3L — Photo · Dan Williams · HD pickup (refurbished freight horn install platform)

Common pitfalls

Buying a “freight train horn” on Amazon and expecting a real chord. Generic 5-trumpet $50-$150 listings produce a five-trumpet sound, not a Nathan K5HL chord. The harmonic ratios are not tuned to locomotive specs.
Mixing freight and passenger trumpets. Don’t try to assemble a custom 5-bell from individual trumpets sourced at various places — bell tuning is a single-unit design property, not modular.
Installing a K5HL with a 1/4-inch solenoid. The 5-bell unit needs 1/2-inch solenoid for full air flow. Smaller solenoid chokes the chord and you lose 5-10 dB.
Pickup hood-mount attempt. A K5HL or RS-3L doesn’t fit under a typical pickup hood. Plan for bed mount, headache rack, or roof rack.
Tapping brake reservoir on Class 8. §393.50 violation. Use wet tank or accessory reservoir only.

Sources

HornBlasters Nathan AirChime overview: hornblasters.com/pages/nathan-airchime-train-horns
HornBlasters refurbished K5LA product page: hornblasters.com/products/airchime-k5-train-horn
HornBlasters refurbished K3LA product page: hornblasters.com/products/airchime-k3-train-horn
HornBlasters Leslie RS-3L: hornblasters.com/products/leslie-rs3l-train-horn
Locomotive Parts Supply Leslie RS-3L refurbished: locomotivepartssupply.com/products/leslie-supertyfon-rs3l-locomotive-train-horn
HornBlasters Conductor’s Special 540 (Shocker XL kit): hornblasters.com/products/hk-s4-540
HornBlasters DJD Labs decibel test: hornblasters.com/blogs/news/how-loud-are-your-train-horns
Wikipedia, Nathan Manufacturing: en.wikipedia.org/wiki/Nathan_Manufacturing
49 CFR §229.129 (FRA locomotive horn standard): ecfr.gov/current/title-49/subtitle-B/chapter-II/part-229/subpart-C/section-229.129
